Brushless electric motors with gearbox are ideal for underwater rotary applications. A new product with absolute encoder, driver included in the housing and RS485 control. The body housing is manufactured from lightweight hard anodized aluminum and the shaft in 17-4 PH stainless steel. Both internal and external oil filled pressure compensators are available.

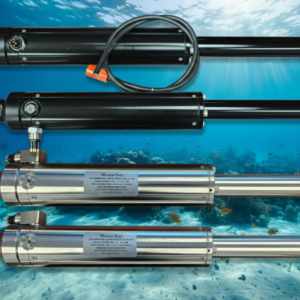

Linear Actuator – Self Compensated
The Linear Actuator includes inside the housing all the necessary circuitry (logic and driver) for position control using standard RS422 (RS485 duplex on 4 wires) serial communication (19200 baud, 8, N, 1). The actuator is equipped with an absolute encoder (30 bits) mounted on the output shaft. The position information is retained between power cycles.

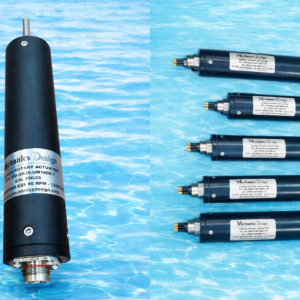

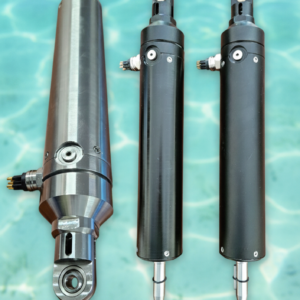

Rotary Actuator – External Compensator
The Rotary Actuator includes inside the housing all the necessary circuitry (logic and driver) for position control using standard RS422 (RS485 duplex on 4 wires) serial communication (19200 baud, 8, N, 1). The actuator is equipped with an absolute encoder mounted on the output shaft. The position information (30 bits) is retained between power cycles.
The actuator can function in a continuous spin mode (jog) as well as position control with a precision of 0.1 deg at the output shaft.
Rotary Actuator – Self Compensated
The Rotary Actuator includes inside the housing all the necessary circuitry (logic and driver) for position control using standard RS422 (RS485 duplex on 4 wires) serial communication (19200 baud, 8, N, 1). The actuator is equipped with an absolute encoder mounted on the output shaft. The position information (30 bits) is retained between power cycles.

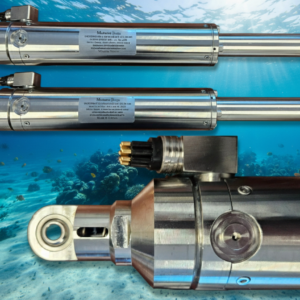

Linear Underwater Actuator
The Underwater Linear Actuator includes a rotary resolver placed on the motor shaft. Driver and control logic are not included.
