Description
Rotary Actuators are made out of SST 316, AL 6061-T6 rated to 3,000m. These Underwater Actuators deliver 10 Nm at 67 rpm.
Driver and control logic are not included.

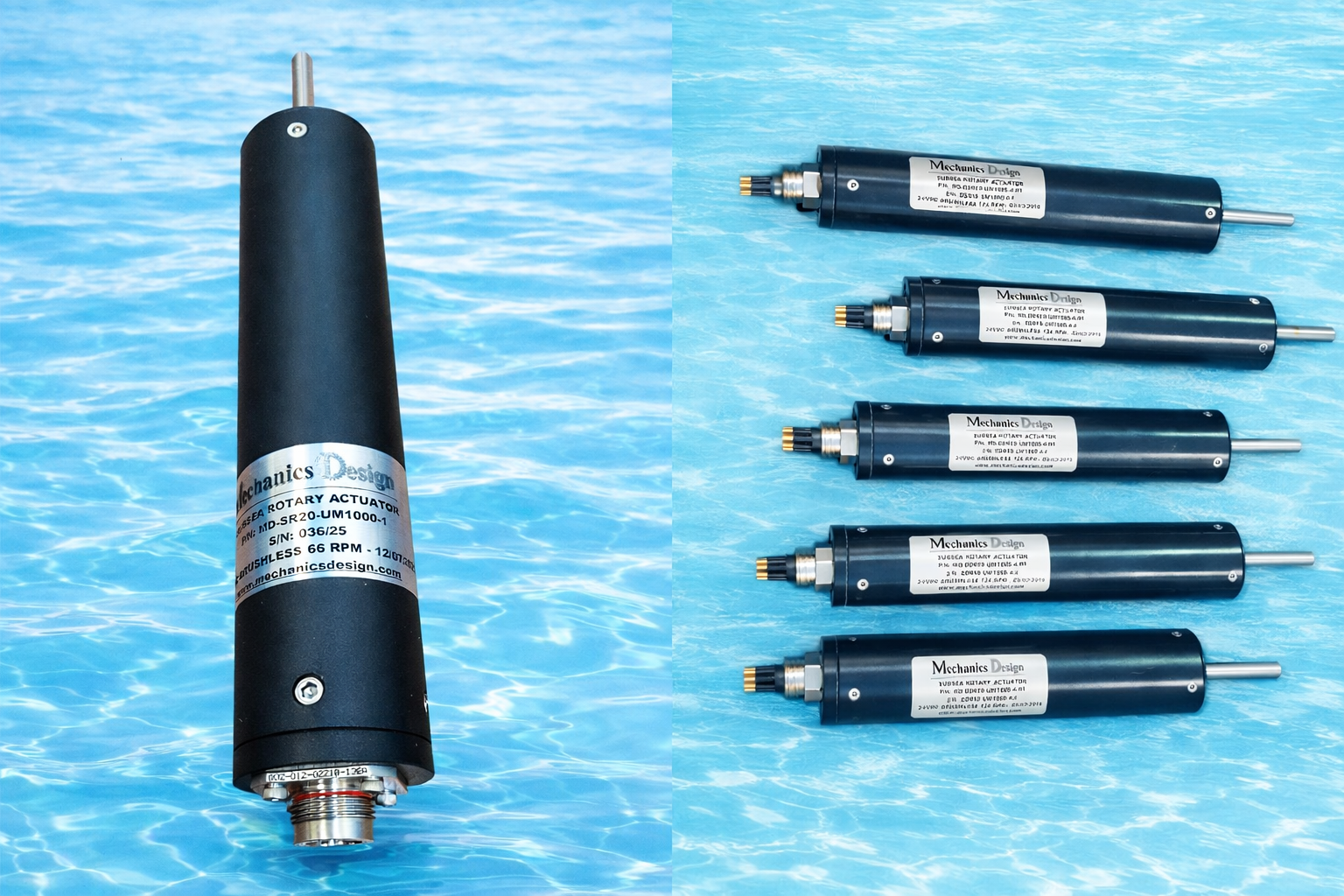

Rotary Actuator 10Nm 67 rpm
$5,200.00 – $6,400.00
Rotary Actuators are made out of SST 316, AL 6061-T6 rated to 3,000m. These Underwater Actuators deliver 10 Nm at 67 rpm.
Driver and control logic are not included.
Specifications
| Motor Type: | Brushless Motor |
| Power: | 24 VDC |
| Torque: | 9 Nm |
| Max Continuous Current: | 4.21 A |
| Max Output Shaft Speed: | 123 RPM at GEAR RATIO 66:1 |
| Diameter: | 1.63 IN |
| Length: | 8 IN |
| Connector: | GLENAIR 802-012-02218 |
